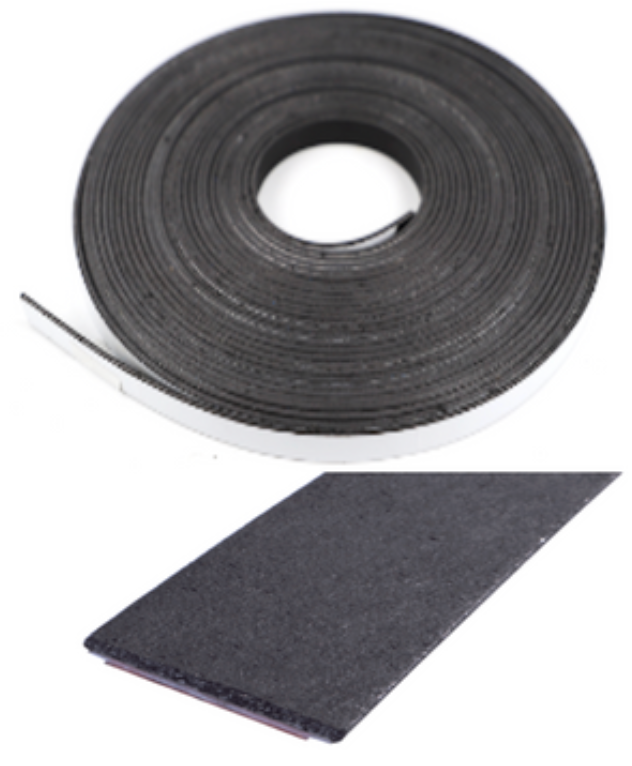

Buy good quality low price Intumescent strips at Wedge India 10x4, 20x4, 10x2, 20x2 mm length 2100 mm. Intumescent strips are a specific type of fire seal designed to expand when exposed to heat, creating a barrier that prevents the spread of fire, smoke, and hot gases through gaps and openings.



Intumescent strips are commonly used around the edges of doors and windows in fire-rated assemblies. These materials are chosen for their ability to undergo a chemical reaction when exposed to high temperatures, causing them to expand and form an insulating barrier.



Features and Benefits of Intumescent strips

Expansion: When exposed to temperatures above a certain threshold (typically around 200°C or 392°F), the intumescent material within the strip begins to expand.

Sealing: This expansion can increase the volume of the material many times over, effectively sealing gaps and preventing the passage of fire, smoke, and hot gases.

Insulation: The expanded material acts as an insulator, slowing the transfer of heat and protecting adjacent areas.

Effective Fire Barrier: Provides a reliable barrier to fire and smoke, helping to contain and control the spread of fire.

Versatile: Can be used in various applications, including doors, windows, and wall penetrations.

Compliance: Helps ensure compliance with fire safety regulations and building codes.



Applications Uses of Intumescent strips

Fire Doors: Installed around the edges of fire doors to maintain the door’s fire resistance rating.

Windows: Used around fire-rated windows to seal gaps and prevent fire spread.

Wall and Floor Penetrations: Applied around pipes, cables, and ducts that pass through fire-rated walls and floors.

Expansion Joints: Used in construction joints to maintain the fire resistance of the building structure.



Types of Intumescent Strips

Surface-Mounted Strips: These are applied directly to the surface of doors or frames. They are often self-adhesive for easy installation.

Embedded Strips: Installed within grooves cut into the door or frame, providing a more concealed appearance.

Combination Strips: These may include additional features such as smoke seals or acoustic seals for added functionality.



Installation of Intumescent strips

Preparation: Ensure that the surface where the strip will be applied is clean, dry, and free from dust and debris.

Measurement and Cutting: Measure the length of the strip needed for the application and cut it to size using a sharp knife or scissors.

Application:

Surface-Mounted: Peel off the backing paper and press the strip firmly onto the surface, ensuring good adhesion.

Embedded: Insert the strip into the pre-cut groove, ensuring it fits snugly.

Inspection: Check that the strip is properly installed and that there are no gaps or loose areas.



Maintenance

Regular Inspections: Periodically inspect intumescent strips for signs of damage or wear.

Cleaning: Keep the strips clean and free from obstructions that could interfere with their function.

Replacement: Replace any damaged or deteriorated strips promptly to maintain fire safety.

Intumescent Strips

  • Technical Data-Sheet, free Thermal Calculations, Ready Stock Information, and quick Delivery Time for your requirement.

    Download Catalog

    Get best Price at Wedge India direct from factory at lowest landed delivery price in Mumbai, Kolkata, Chennai and Delhi.
